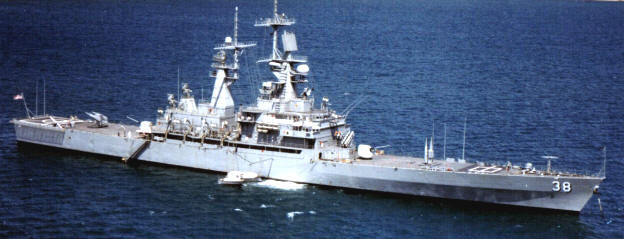

USS Virginia CGN-38

Build any model ship of the Class. Resin $269.95  kit# DC051


"Basics of Ship Building" by Mike Ashey
The bible today for the Model Shipbuilder. This book will give step by
step pictures on building plastic kits, resin kits plus photoetching. This is
the best book for the beginner to experienced builder on the newer
special high price kits resin kits and customizing parts.

1. Building Plastic Kits 2. Building Resin Kits
3. Scratchbuilding & Detailing Superstructure Shapes
4. Working with Brass & Stainless Steel Photoetching
5. Painting, Masking, & Decal Application
There is also an 18-page section of color photographs
of finished models by Mike and others. Of the hundreds
of black and white how - to photos. I recognized very
few from his first book. Most highly recommended.
Published by Kalmbach.     #BK02 19.95

CGN-38 Virginia Class

The four Virginia class guided missile cruisers were equipped to fulfill multiple tasks in all warfare mission areas. The ships were equiped with two twin-rail missile launchers for AAW with ASROC capability; two 5" .54 caliber gun mounts for AAW and ASUW; two three-barrel torpedo launchers for ASW; and a LAMPS helicopter for ASW. Two pressurized nuclear reactors were capable of propelling the ship at speeds in excess of 30 knots, providing the endurance and capability to operate with other conventional and nuclear ships over extended periods of time and great distances. During the 1980s the ships were was outfitted with the Tomahawk Cruise Missile System, the Standard SM2(MR) Missile System, and the AN/SPS-49 Air Search Radar. Planned Refueling Complex Overhauls were canceled in the early 1990s due to the expense of maintaining the nuclear propulsion components, and the ships were all decommissioned after a relatively brief period of service averageing somewhat less than two decades. Thus the CGN-41 was commissioned in 1980 with a life expectancy of 38 years, though it was retired in 1997 after only half that period in service.



Specifications

Power Plant 2 D2G General Electric nuclear reactors,
two shafts, 60,000 shp
Length Overall Length: 586 ft
Waterline Length: 560 ft
Beam Extreme Beam: 63 ft
Waterline Beam: 62 ft
Draft Maximum Navigational Draft: 32 ft
Draft Limit: 23 ft
Displacement Light Displacement: 10663 tons
Full Displacement: 11666 tons
Speed 30 plus knots
Aircraft None
Helicopter Landing Capability None
Armament Standard Missiles (MR)
ASROC
8 - Tomahawk ASM/LAM (from 2 armored box launchers
8 - Harpoon (from two Mk141 quad launchers)
4 - MK 46 torpedoes (from fixed single tubes)
2 - Mk45 5-inch/54 caliber lightweight gun
2 - 20mm Phalanx CIWS
Combat Systems SPS-40 Air Search Radar
SPS-48 3D Air Search Radar
SPS-67 Surface Search Radar

SQQ-26 Sonar [bow mounted]

1 Mk14 Weapon Direction System
2 Mk74 Missile Fire Control System
1 Mk86 Gun Fire Control System
1 Mk114 ASW Fire Control System
4 SPG-51 Radars

SLQ-25 NIXIE
SLQ-32 EW system

Crew 39 Officers, 539 Enlisted
Unit Operating Cost
Annual Average
~$40,000,000 [source: [FY1996 VAMOSC]
Unit Cost $675 million [1990 prices]

Ships

Name Number Builder Homeport Ordered Commissioned Decommissioned
Virginia CGN 38 Newport News Norfolk 21 Dec 1971 11 Sep 1976 10 Nov 1994
Texas CGN 39 Newport News Alameda 21 Dec 1971 10 Sep 1977 16 Jul 1993
Mississippi CGN 40 Newport News Norfolk 21 Jan 1972 05 Aug 1978 28 Jul 1997
Arkansas CGN 41 Newport News Bremerton 31 Jan 1975 18 Oct 1980 07 Jul 1997
