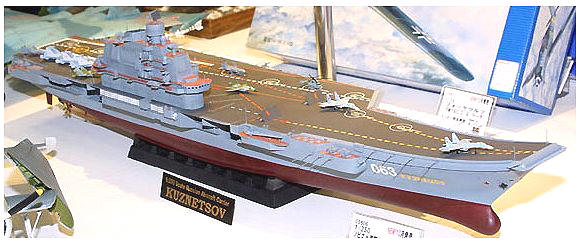

Admiral Kuznetsov 1/700 or 1/350 Ship Models

List Price $249.95
Our Price save big bucks 69.95 or 209.95
Kit#  A802  1/700- 15"  1/350 about 30" long.




Great article on the kit click here.

KUZNETSOV CLASS (TYPE 1143.5) HEAVY AIRCRAFT CARRYING CRUISER, RUSSIA


The Kuznetsov Class heavy aircraft carrying cruiser, also known as Project 1143.5 or Orel Class, was constructed at Nikolayev South Shipyard on the Black Sea in the Ukraine. The Admiral Kuznetsov, was launched in 1985. A second-of-class vessel, the Varyag, was launched in 1988 but was never commissioned. Admiral Kuznetsov is the only aircraft carrier in the Russian Navy. The hull design is based on the earlier Admiral Gorshkov, launched in 1982, but it is larger with a full load displacement, 58,500t as compared to 40,400t. Admiral Gorshkov has not been operational since 1988 and India is expected to sign an agreement to buy the refurbished vessel in March 2003.

The Admiral Kuznetsov supports strategic missile carrying submarines, surface ships and maritime missile-carrying aircraft of the Russian fleet.

AIRCRAFT

The flight deck area is 14,700m? and aircraft take-off is assisted by a bow ski-jump angled at 12. The flight deck is equipped with arrester wires. Two starboard lifts carry the aircraft from the hangar to the flight deck.

The ship has the capacity to support 16 Yakovlev Yak-41M (NATO code name Freestyle), twelve Sukhoi Su-27K (NATO codename Flanker) fixed-wing aircraft and a range of helicopters including four Kamov Ka-27-LD (NATO codename Helix), 18 Kamov Ka-27 PLO, and two Ka-27-S.

MISSILES

The ship has a Granit anti-ship missile system equipped with twelve surface-to-surface missile launchers. The Granit missile (NATO codename SS-N-19 Shipwreck) is reported to have a range greater than 400km and is capable of carrying either a nuclear or conventional warhead.

The Klinok air defence missile system, with 24 vertical launchers and 192 missiles, defends the ship against anti-ship missiles, aircraft and surface ships. The system has a multi-channel electronically steered phased array radar and can achieve a firing rate of one missile every 3s. Four targets can be engaged simultaneously in a 60 x 60 sector. The range of the system is 12 to 15km.

The Kashstan Air Defence Gun/Missile System, supplied by the Instrument Design Bureau and Tulamashzavod JSC in Tula, provides defence against precision weapons including anti-ship and anti-radar missiles, aircraft and small sea targets. Eight systems are fitted, combining missile launcher, 30mm twin gun and radar/optronic director. The range of the laser beam-riding missiles is from 1.5 to 8km. The gun can fire up to 1,000 rounds/min in the range 0.5 to 1.5km. Six AK630 AD 30mm air defence guns are also fitted.

ANTI-SUBMARINE WARFARE

The ship is equipped with an Udav-1 anti-submarine system with 60 anti-submarine rockets. Udav-1, supplied by the Splav Research and Production Association in Moscow, protects surface ships by diverting and destroying incoming torpedoes. The system also provides defence against submarines and saboteur systems such as underwater vehicles. The system has ten barrels and is capable of firing 111SG depth charge projectiles, 111SZ mine laying projectiles and 111SO diverting projectiles. The range of the system is up to 3,000m and the submarine engagement depth is to 600m.

SENSORS

The ship's radars include a D/E band air and surface target acquisition radar, an F-band surface search radar, G/H band flight control radar, I-band navigation radar, and four K-band fire control radars for the Kashstan Air Defence Gun/Missile System.

The ship's hull-mounted search and attack sonar, operating in the medium- and low-frequency bands, is capable of detecting torpedoes and submarines. The anti-submarine warfare aircraft are equipped with surface search radar, dipping sonar, sonobuoys and magnetic anomaly detectors.

PROPULSION

The ship is conventionally powered and has eight boilers and four steam turbines, each producing 50,000hp, driving four shafts with fixed-pitch propellers. The maximum speed is 29 knots, and the range at maximum speed is 3,800 miles. The ship provides a maximum range of 8,500 miles at a speed of 18 knots.
